| Range of bending force | 250-4200Kn |
| Range of bending length | 3100-6100mm |
| Range ofthroat depth | 46-mm |
| Range of max. stroke | 150-400mm |
| Range of daylight | 340-600mm |
| Approximate workpiece max.weight | 200kg |
| Robotic max load-bearing capacity | 300kg |
| Stacking height of sheet metal | 1800mm |
| Stacking height | 1800mm |
| Air Pressure | 6-8Bar |

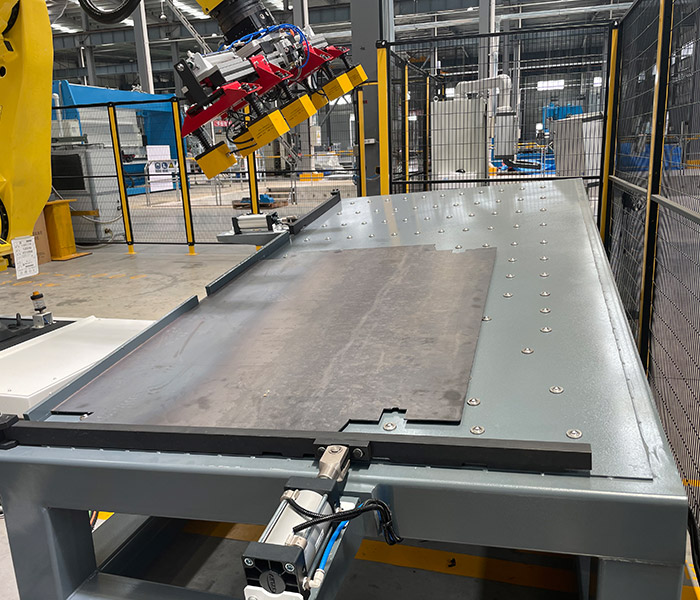

According to the actual situation of the customer.

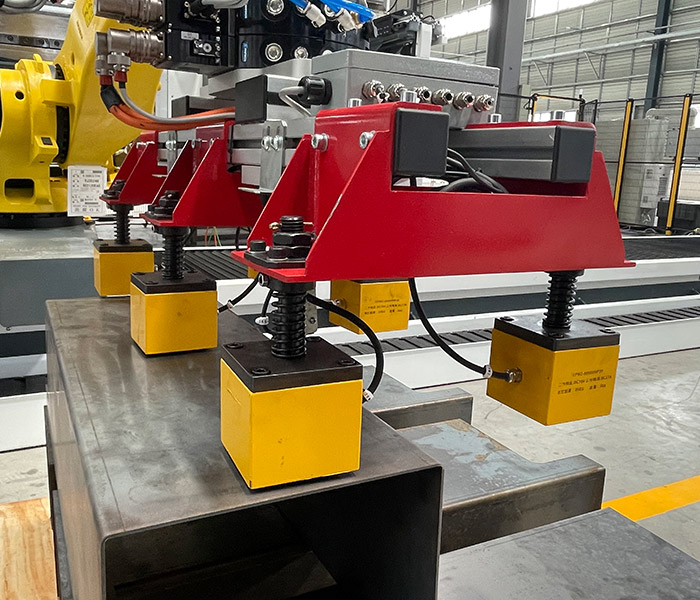

Customized robot grippers are required based on the actual situation of the customer.

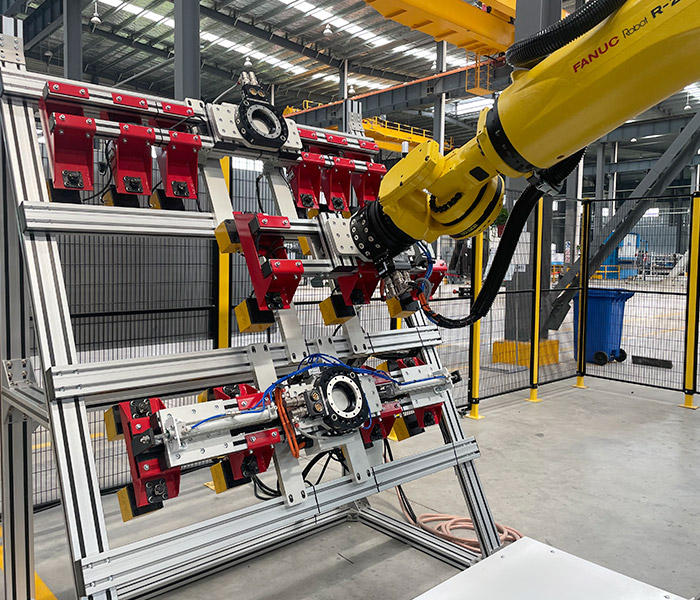

The gripper frame is composed of a steel welded frame and special aluminum profiles, with a stable structure.
Used for storing and replacing multiple pairs of grippers.
Optional: manually change the grip or automatically change the grip device.

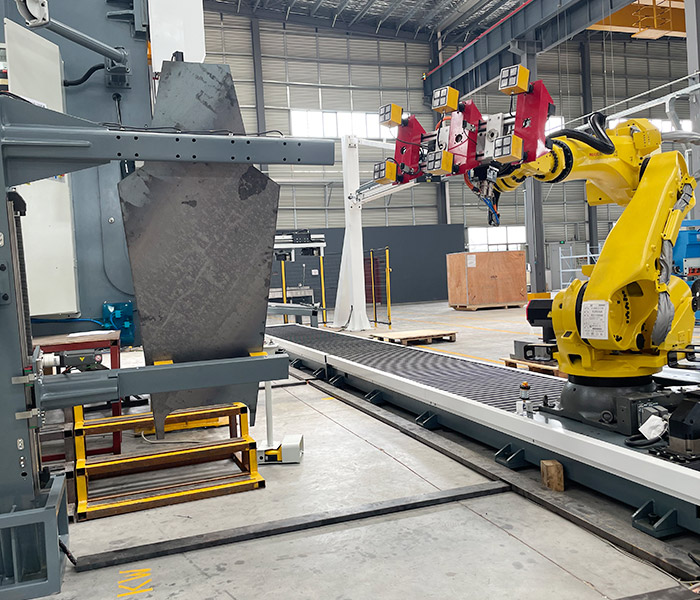

Comprehensive considerations need to be made based on the maximum weight of the flipped board and the on-site environment.

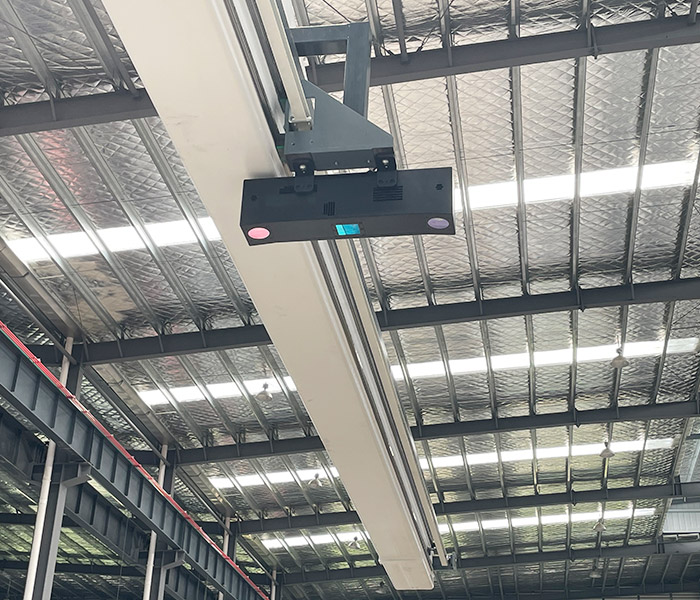

According to the actual situation of the customer,It can guide the robot to grab metal sheet.

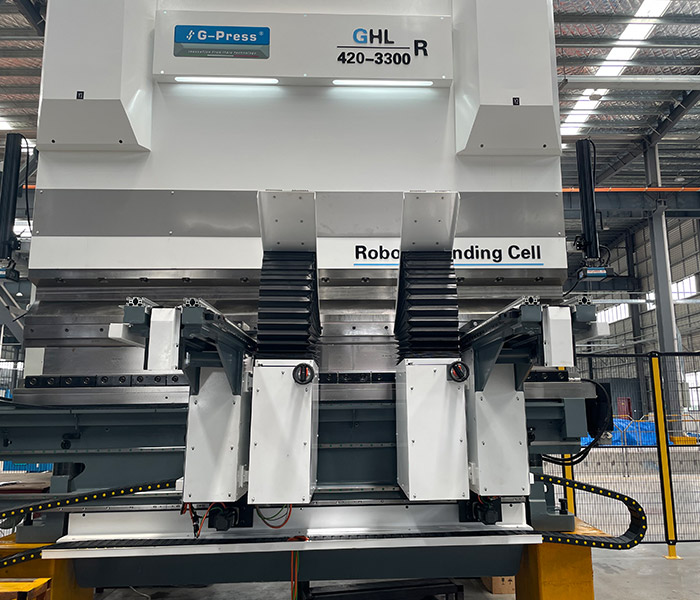

This parts is designed as a soft contact treatment of the contact surface between the device and the workpiece, avoiding hard contact and scratching of the workpiece, and ensuring the appearance of the workpiece to a greater extent requirement.

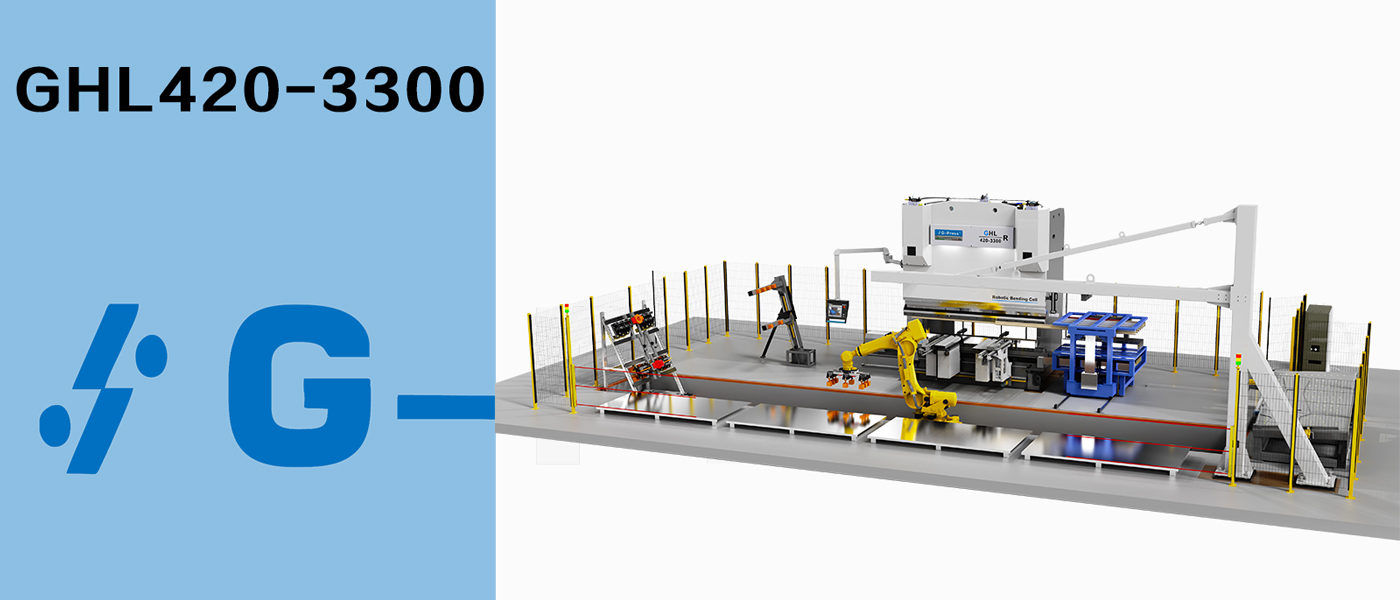

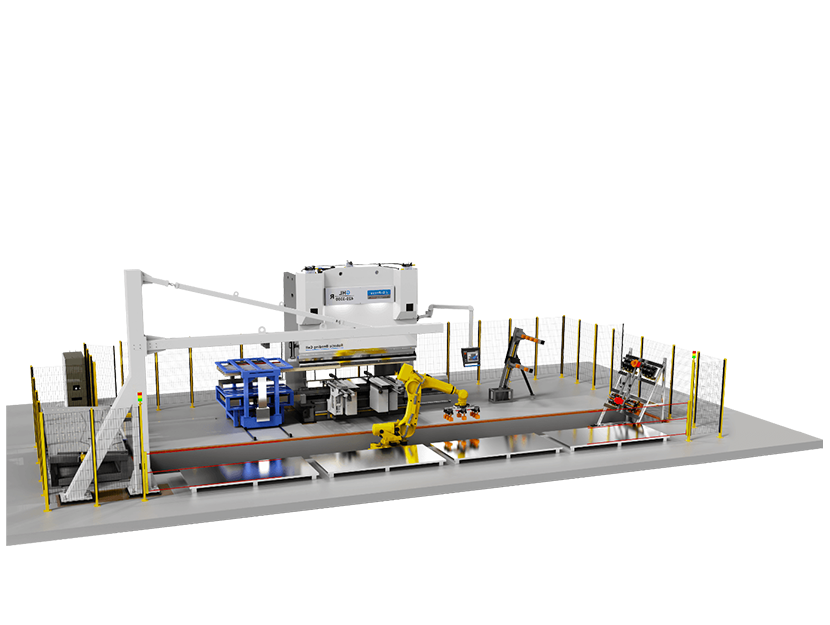

The above is the basic parts of the robotic bending cells,other configurations are provided separtely according to customized.
