From uncoiling, feeding, cutting, to cutting, all in one go. Integrated processing production line, achieving continuous cutting production, can form an assembly line style production.
Independent control cabinet
Separate the electrical part from the bed to avoid vibration of electrical components.
Cooling air conditioning
Increase cooling air conditioning to ensure that electrical components are in a constant temperature environment and operate stably for a long time.
Technical parameters
Model

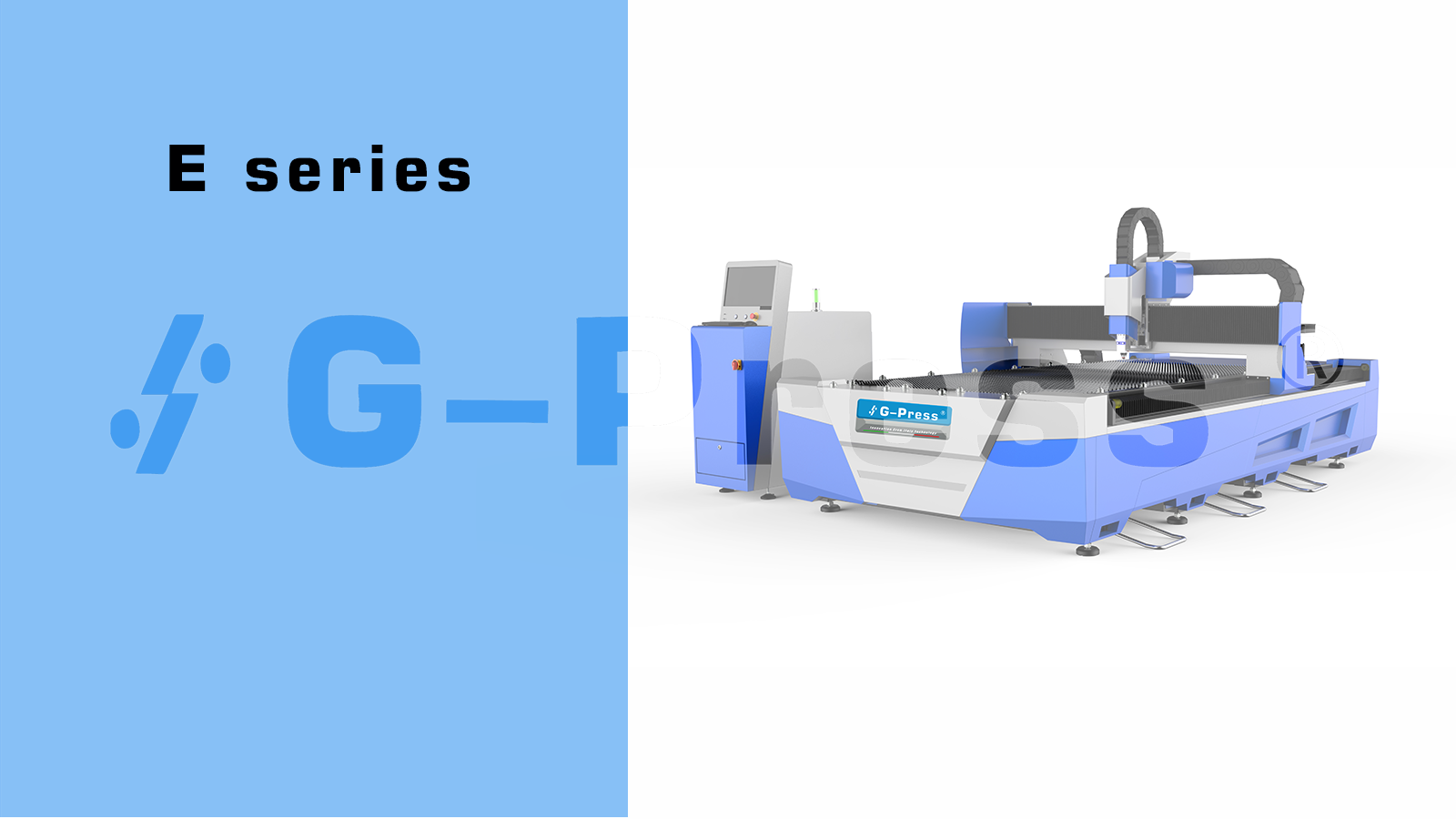

E Series
Processing Area(L×H)
3000×1500mm
Laser Power
1500W-6000W
Positioning
Accuracy
±0.05mm/m
Repeated
Positioning Accuracy
±0.03mm
Maximum
Cutting Speed
100m/min
Maximum
Acceleration
1.0G
FAQ
Professional Bending Machine Equipment Manufacturer
How can I choose the press brake best suited to my needs?
If you provide us with information such as material type, length and thicknesses, we can study the best solution. You can also provide us with a workpiece drawing (preferably in dxf or dwg format) and we can also recommend suitable tooling.
What is your lead time?
The lead time for standard press brakes (up to 420T) is 30-45 days.
For bigger or customized press brake the lead time is established once all. Technical specifications are clear (minimum 3 months).
Do you have a company presentation video?
Yes we do! For details, please click on the link: http://www.ziboceramics.com/company/
What is the size of G-Press factory?
Our factory area is 200,000 square meters.
Where is your factory located?
Our factory is in Dongtai city (about 3 hours from Shanghai). You can reach us by car or take the high-speed train directly from Shanghai Hongqiao Station to Jiangsu Dongtai Station, which takes about two hours.
How many employees do you have?
G-Press company counts a total of 140 employees, including 20 technicians.
Does your company have an R&D department?
Yes it does.
How are your machines transported (or shipped)?
Depending on the type of press brake and its final destination, machines are shipped either by rail or by sea.
