G-BendCells 110

The robotic bending cells is a solution designed for small variety but large regular order workpieces.
It can save labor (on average, one machine can save 1-2 labor)
Extend working hours (24-hour continuous work).

Reduce the risk of work-related injuries in enterprises.

Ensure high bending accuracy and improve qualification rate.

Usually, the automation unit of the bending machine is widely used in industries such as door panels, elevators, chassis, and cabinets.

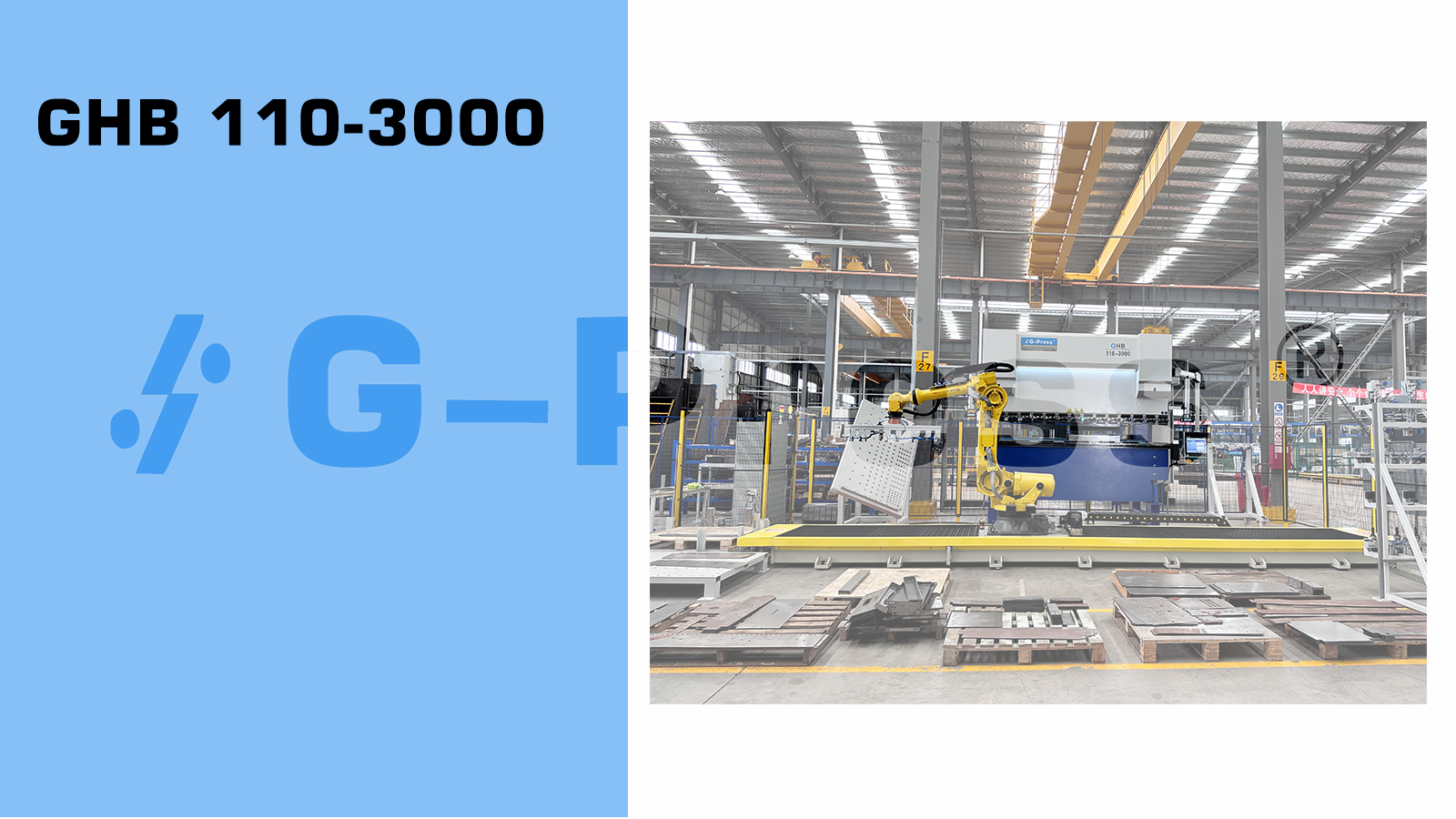

Video

Technical Specifications

Technical parameters

Range of bending force	250-4200Kn
Range of bending length	3100-6100mm
Range ofthroat depth	46-mm
Range of max. stroke	150-400mm
Range of daylight	340-600mm
Approximate workpiece max.weight	200kg
Robotic max load-bearing capacity	300kg
Stacking height of sheet metal	1800mm
Stacking height	1800mm
Air Pressure	6-8Bar

Advantage equipment display

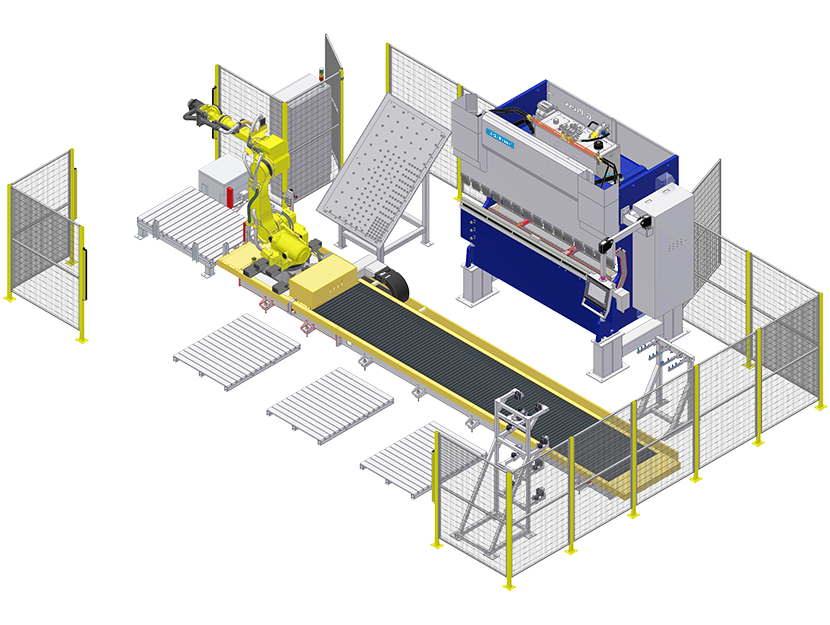

Robotic bending cells standard configuration

GHB60-2000 press brake

GHB series press brake

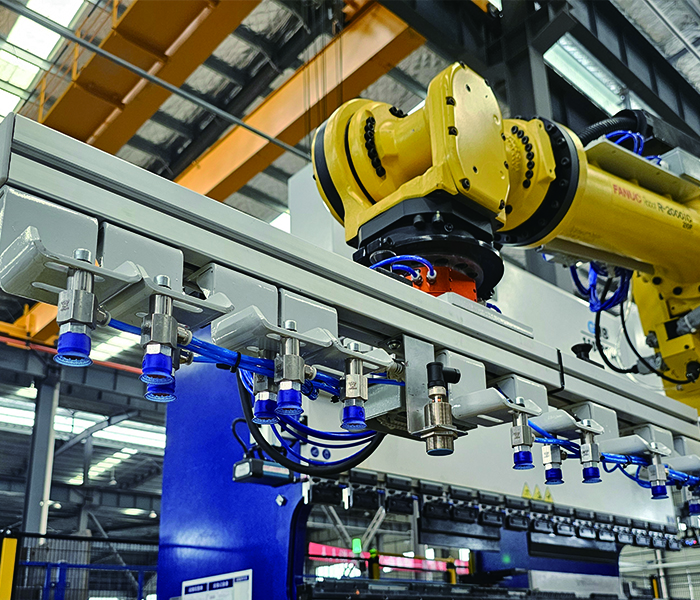

Grippers

Customized robot grippers are required based on the actual situation of the customer.

Gravity positioning stage

Saving time on robot feeding metal sheets and one-time positioning, and improving production efficiency.

Plate thickness detection

Plate thickness detection can check the thickness of the plate on the gripper before bending, and can determine whether the currently grasped plate is correct.

Real-time production management system

It can provide the real-time production data for customers.

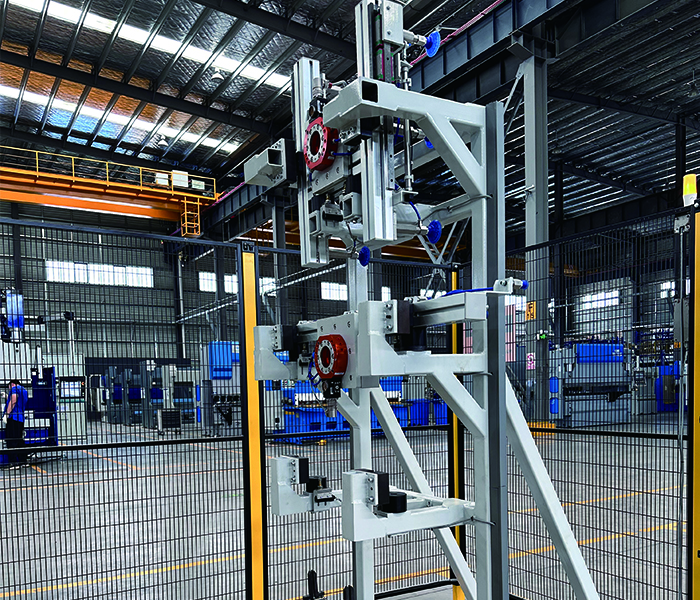

Gripper frame

It can stock more than 3 gripper ,customized avaliable.

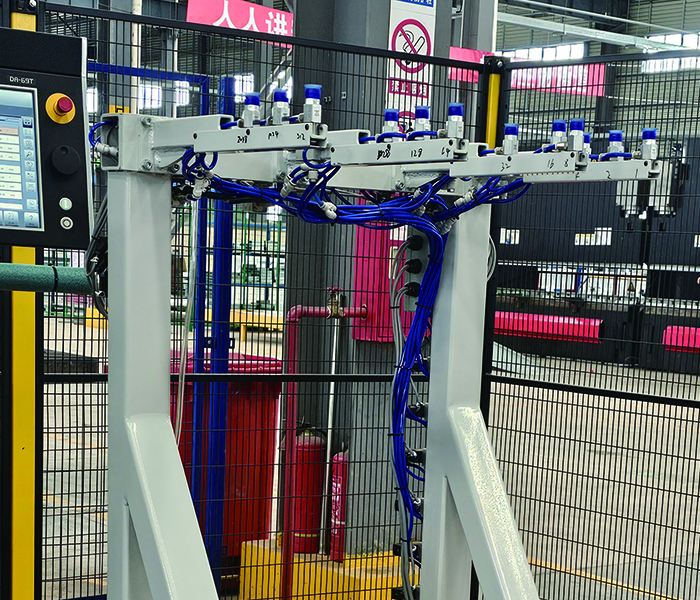

Sheet reverser

More accurate workpiece flipping positioning and higher efficiency.

DSP AP+MCS

Get Quote

GHP-5(X-R-Z1-Z2+X5)

Get Quote

FAQ

Professional Bending Machine Equipment Manufacturer

How can I choose the press brake best suited to my needs?

If you provide us with information such as material type, length and thicknesses, we can study the best solution. You can also provide us with a workpiece drawing (preferably in dxf or dwg format) and we can also recommend suitable tooling.

What is your lead time?

The lead time for standard press brakes (up to 420T) is 30-45 days. For bigger or customized press brake the lead time is established once all. Technical specifications are clear (minimum 3 months).

Do you have a company presentation video?

Yes we do! For details, please click on the link: http://www.ziboceramics.com/company/

What is the size of G-Press factory?

Our factory area is 200,000 square meters.

Where is your factory located?

Our factory is in Dongtai city (about 3 hours from Shanghai). You can reach us by car or take the high-speed train directly from Shanghai Hongqiao Station to Jiangsu Dongtai Station, which takes about two hours.

How many employees do you have?

G-Press company counts a total of 140 employees, including 20 technicians.

Does your company have an R&D department?

Yes it does.

How are your machines transported (or shipped)?

Depending on the type of press brake and its final destination, machines are shipped either by rail or by sea.

What are your acceptable foreign trade terms?

Our accepted foreign trade terms are: FOB, CIF, CFR.
